FZ Rave Highlights
Key Specifications
EngineAir cooled, 4-stroke
Power12.2 BHP @ 7250 RPM (9.1 kW)
Torque13.3 Nm @ 5500 RPM
Fuel Tank13 L
Kerb Weight136 Kg
Key Features
- Digital Console
- Smart Connectivity
- USB Port
- Side Stand Alert
- Service Reminder
- Voice Commands
- Remote Start
- Ride Modes
FZ Rave Price
The price of Yamaha FZ Rave starts at ₹1.17 Lakhs and goes up to ₹1.17 Lakhs. Yamaha FZ Rave comes with 1 variants.
Variant
Ex. Showroom Price
FZ Rave Standard
₹1.17 Lakhs
FZ Rave Variants
Yamaha FZ Rave available in 1 variants and 2 options
FZ Rave Standard (2)
FZ Rave STD Matte Titan
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹1.17 Lakhs* (Ex. showroom price)

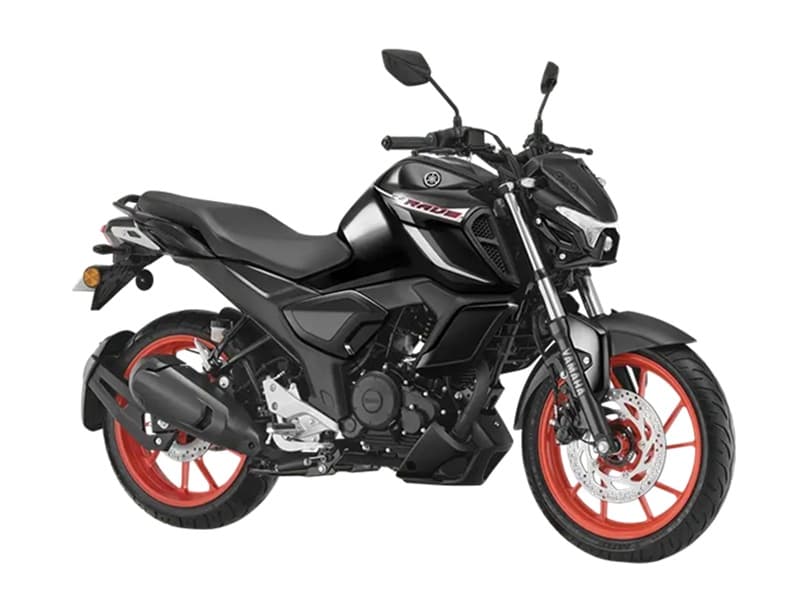

FZ Rave STD Metallic Black
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹1.17 Lakhs* (Ex. showroom price)
FZ Rave Specifications
Dimension
Length / Width / Height1990 / 780 / 1080 mm
Ground Clearance165 mm
Wheelbase1330 mm
Seat (Length / Height)- / 790 mm
Fuel Tank13 L
Weight (Kerb / Gross)136 Kg / -
Brake
Braking SystemABS (Dual Channel)
Front BrakeDisc
Rear BrakeDisc
Suspension
Frame TypeDiamond
Front SuspensionTelescopic Fork
Rear SuspensionSwingarm
Tyres
Front TyreTubeless 100/80-17M/C 52P
Rear TyreTubeless 140/60R-17M/C 63P
WheelAlloy Wheel
FZ Rave Engines
Engine
Engine TypeAir cooled, 4-stroke
Compression Ratio9.6 : 1
Valve SystemSOHC, 2-valve
Bore / Stroke57.3 mm / 57.9 mm
Displacement149 cc
Maximum Power12.2 BHP @ 7250 RPM (9.1 kW)
Maximum Torque13.3 Nm @ 5500 RPM
Fuel SystemFuel Injection
Starting MechanismElectric Starter
Cooling SystemAir Cooled
ClutchWet Multi-Disc
Gearbox5-Speed
LubricationWet Sump
Electrical
Electrical System12V
Battery12V, 3.0Ah
Head LightLED
Tail LightLED
Turn Signal LightLED
Daytime Running LightYes
Low Fuel IndicatorYes
FZ Rave Features
Features
Instrument ClusterYes (Digital)
DisplayYes (Negative LCD)
SpeedometerYes (Digital)
TachometerYes (Digital)
OdometerYes (Digital)
TripmeterYes (Digital - 2 Tripmeters)
Fuel GaugeYes (Digital)
ClockYes (Digital)
Gear IndicatorYes (Digital)
Service Due IndicatorYes
Low Fuel IndicatorYes
Low Oil IndicatorYes
Low Battery IndicatorYes
Malfunction IndicatorYes
High Beam IndicatorYes
Seat TypeYes (Single / 2 Level Seat)
Passenger FootrestYes
USB Charging PortNo
Cruise ControlNo
E20 Fuel CompatibleYes
Safety Features
Anti-lock Braking SystemYes (Single Channel)
Traction Control SystemN
Side Stand Engine Cut-offYes
Saree GuardYes
Call / SMS / Email AlertYes
Geo FencingYes
Pillion GrabrailYes
Engine Kill SwitchYes
Pass SwitchYes
Hazard Warning IndicatorN
App Features
Mobile Phone ConnectivityYes (Yamaha Y-Connect App)
Bluetooth ConnectivityYes
Vehicle CheckYes
Last Parking LocationYes
NavigationN
OTA UpdatesN
FZ Rave Colors
Yamaha FZ Rave available in 2 colors
Matte Titan
Metallic Black
