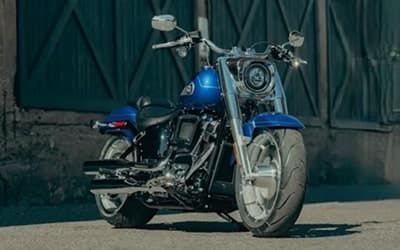

Harley-Davidson Fat Boy
Fat Boy Highlights
Key Specifications
EngineMilwaukee-Eight 117 Custom
Power104.4 BHP @ 5020 RPM (77 kW)
Torque168 Nm @ 3000 RPM
Fuel Tank18.9 L
Kerb Weight315 Kg
Key Features
- Milwaukee-Eight 117 Engine
- Selectable Ride Modes
- All-LED Lighting with Signature Headlamp
- Lakester Cast Wheels with Fat Tires
- Steamroller Stance with Low Seat Height
- Two-Into-Two Exhaust with Deep Rumble
Fat Boy Price
The price of Harley-Davidson Fat Boy starts at ₹28.03 Lakhs and goes up to ₹28.56 Lakhs. Harley-Davidson Fat Boy comes with 4 variants.
Variant
Ex. Showroom Price
Fat Boy Base
₹28.03 Lakhs
Fat Boy Vivid Black
₹28.13 Lakhs
Fat Boy Two-Tone
₹28.56 Lakhs
Fat Boy Variants
Harley-Davidson Fat Boy available in 4 variants and 4 options
Fat Boy Base (1)

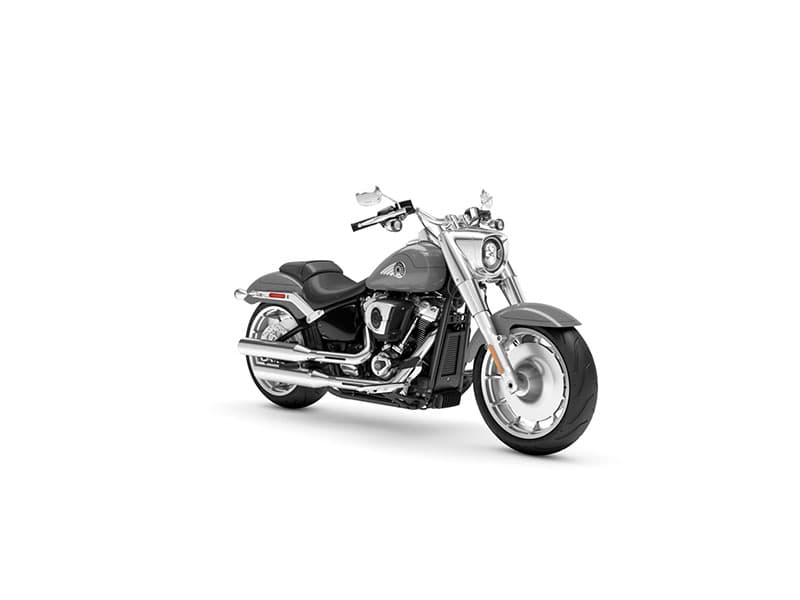

Fat Boy Base Billiard Gray
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹28.03 Lakhs* (Ex. showroom price)
Fat Boy Vivid Black (1)
Fat Boy Vivid Black
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹25.99 Lakhs* (Ex. showroom price)

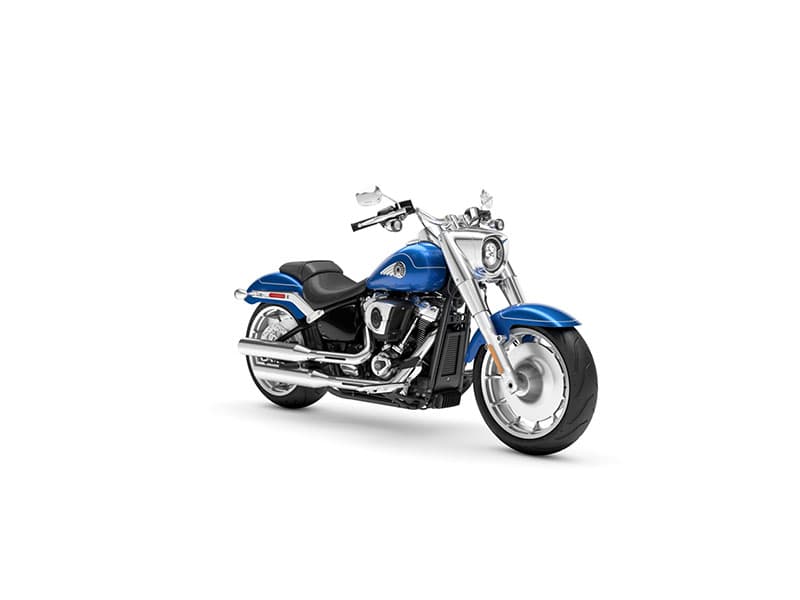

Fat Boy Premium Blue Burst
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹28.13 Lakhs* (Ex. showroom price)
Fat Boy Two-Tone (1)

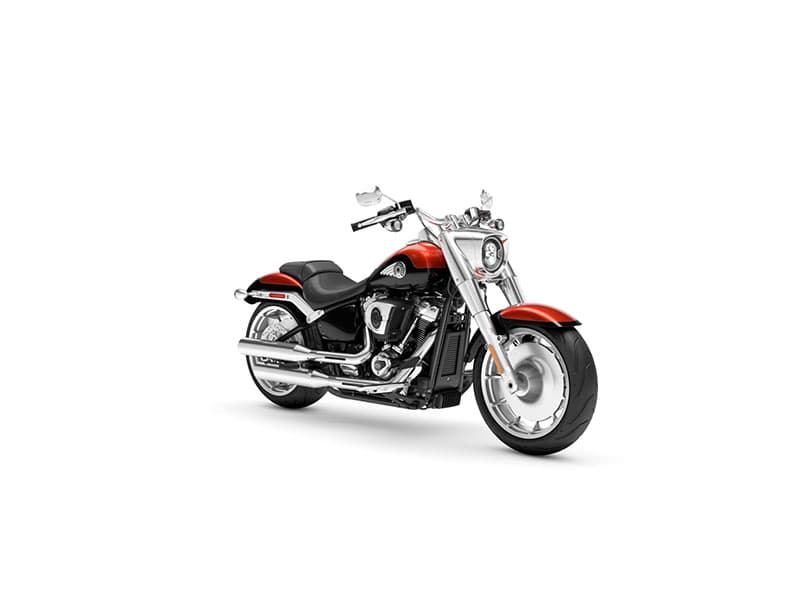

Fat Boy Two-Tone Whiskey Fire / Vivid Black
Brake: Disc
Tyre: Tubeless
Wheel: Alloy Wheel
₹28.56 Lakhs* (Ex. showroom price)
Fat Boy Specifications
Dimension
Length / Width / Height2365 / 965 / mm
Ground Clearance125 mm
Wheelbase1650 mm
Seat (Length / Height)- / 675 mm
Fuel Tank18.9 L
Weight (Kerb / Gross)315 Kg / -
Brake
Braking SystemABS
Front BrakeDisc
Rear BrakeDisc
Suspension
Front SuspensionDual-bending Valve 49 mm Telescopic with Aluminum Fork Triple Clamps
Rear SuspensionHidden; Free Piston; Coil-over Monoshock; 43mm Stroke; Hydraulic Preload Adjustment
Tyres
Front TyreTubeless 160/60R18 70V BW
Rear TyreTubeless 240/40R18 79V BW
WheelAlloy Wheel
Fat Boy Engines
Engine
Engine TypeMilwaukee-Eight 117 Custom
Compression Ratio10.3 : 1
Bore / Stroke103.5 mm / 114.3 mm
Displacement1923 cc
Maximum Power104.4 BHP @ 5020 RPM (77 kW)
Maximum Torque168 Nm @ 3000 RPM
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Starting MechanismElectric Start
Gearbox6-Speed
Electrical
Head LightLED
Tail LightLED
Turn Signal LightLED
Daytime Running LightYes
Low Fuel IndicatorYes
Fat Boy Features
Features
Instrument ClusterYes (Digi-Analogue)
SpeedometerYes (Digital)
TripmeterYes (Digital)
OdometerYes (Digital)
Fuel GaugeYes (Digital)
ClockYes
Gear Position IndicatorYes
Range IndicationYes (Distance to Empty)
Low Battery IndicatorYes
Low Oil IndicatorYes
Engine DiagnosticsYes
ABS IndicationYes
Cruise ControlYes (Standard)
Cruise Control IndicatorYes
Traction Control IndicatorYes
Riding ModesYes (Rain + Road + Sport)
Hazard WarningYes (Indicator and Switch)
USB Charging PortYes
Seat TypeYes (Split)
Passenger FootrestYes
Keyless IgnitionYes
Body GraphicsYes
Safety Features
Security System IndicatorYes
Pass Light SwitchYes
Automatic Headlight OnYes
Pillion GrabrailYes
Anti-lock Braking SystemYes (Dual-Channel - Cornering Enhanced)
Traction Control SystemYes (Cornering Enhanced)
Drag-Torque Slip Control SystemYes (Cornering)
Tyre Pressure Monitoring SystemYes
Side Stand Engine Cut-offYes
Engine Kill SwitchYes
App Features
Bluetooth ConnectivityYes
Mobile App ConnectivityYes (Ride Planning + Community & Events)
GPS NavigationYes
Ride RecordYes
Vehicle InformationYes
Fat Boy Colors
Harley-Davidson Fat Boy available in 4 colors
Billiard Gray
Vivid Black
Blue Burst
Whiskey Fire/Vivid Black
